Heat Resistant Welding Backing Tape

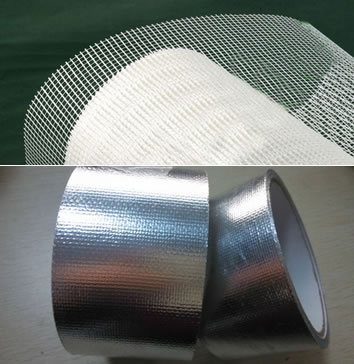

Aluminum Foil Tape with Fiberglass ( Fibre Glass) Mesh Center Woven Stripe is known as Weld Backing Tape. This product is popularly used for welding of thin stainless steel. The tape is typically attached to the backside of the weld area and supports the weld pool, keeps the argon gas surrounding the weld pool. The heat resistant aluminium tape with woven fiberglass center strip is applied to eliminate or reduce the need for back purging during welding process.

Hot melt rubber adhesive fiber mesh tape works as a simple alternative to back purging, and it offers huge benefits by simply applying a strip of self adhesive welding tape to the back of the weld.

Welding Protection Mesh Rolls

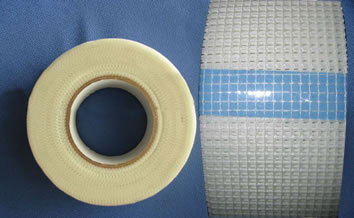

Fibre Glass Weld Back-up Tape of 3" wide aluminum tape with adhesive strips of 1" wide woven fiberglass mesh strip in the middle.

Welding back tape specification for Kuwait market: Minimum size: Width of aluminum foil tape is 2.5”, width of fiberglass mesh center strip is 1”, the roll Length is 12 Meter. The total tape width of 3” with 1” of fiberglass center adhesive strip is also popular. Custom size welcome.

Die Cutting Heat Resistant Aluminum Foil Tape
Technical Requirements for Fiberglass Weld Back-up Tapes:
Should not burn away or oxidize during welding;
With high resistant adhesive system(unto 250 deg C);
Fiberglass should withstand temperature unto 500-600 degree;
Shall be Halogen free and with acrylic base adhesive;
Shall be compatible with Carbon Steel, Stainless Steel, Alloy Steel, Aluminium and Nickel Alloys;
Minimum size: Width of tape=2.5”, width of fiberglass center strip =1”, Roll Length=12 Mtr;
Provides a consistent high quality under bead profile.
The most popular tape is 3" wide aluminum tape with adhesive strips on each side of a 1" wide woven tape strip in the middle.
Supports single pass welding at currents up to 240 amps without change to the chemistry or metallurgy of the weld.
Available in Light Duty (80 amp), Medium Duty (160 amp) and Heavy Duty (240 amp) ratings.
1100°F/593°C Continuous Exposure: Higher Intermittent.
Fibre /Fiber Glass Weld Back-up Tape offering the following Benefits:
1. Less back purging
2. Less post weld dressing
3. Less fettling
4. Smoother flatter welds
5. One sided welding

Note: Always wear safety glasses, dust mask, gloves and long sleeves are recommended when handling this product.

Physical Data of Fiberglass Woven Tape for Making of the Center Strip of the Weld Backing Tape:

Item Physical Parameter
Backing Adhesive Thickness
(Tensile strength )N/cm Temperature resistance
Voltage resistance Elonggation
Fiber glass tape(in strip) Fiber glass laminated with PE Hot melt rubber 0.12 0.13 0.15 2500 100 above 25 4
Fiber glass tape(in mesh) Fiber glass laminated with PE Hot melt rubber 0.12 0.13 0.15 2000 100 above 25 4
